DESCRIPTION

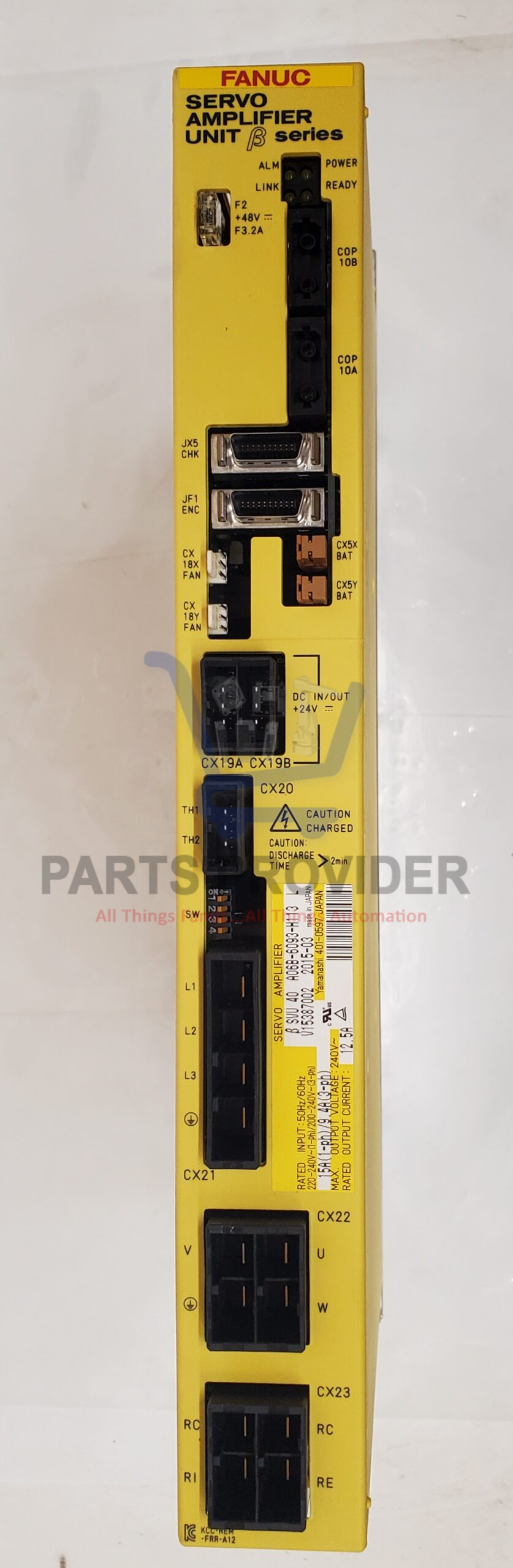

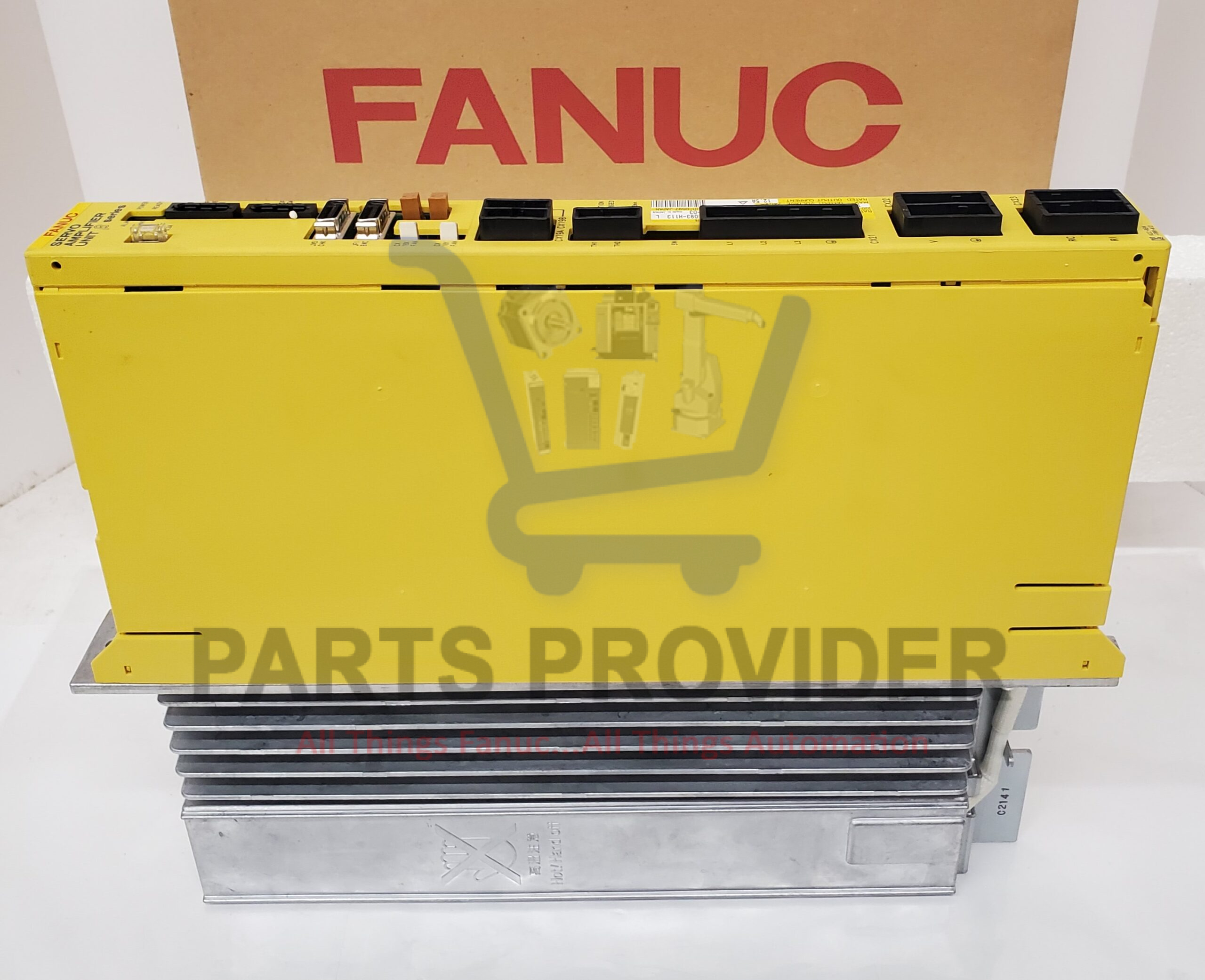

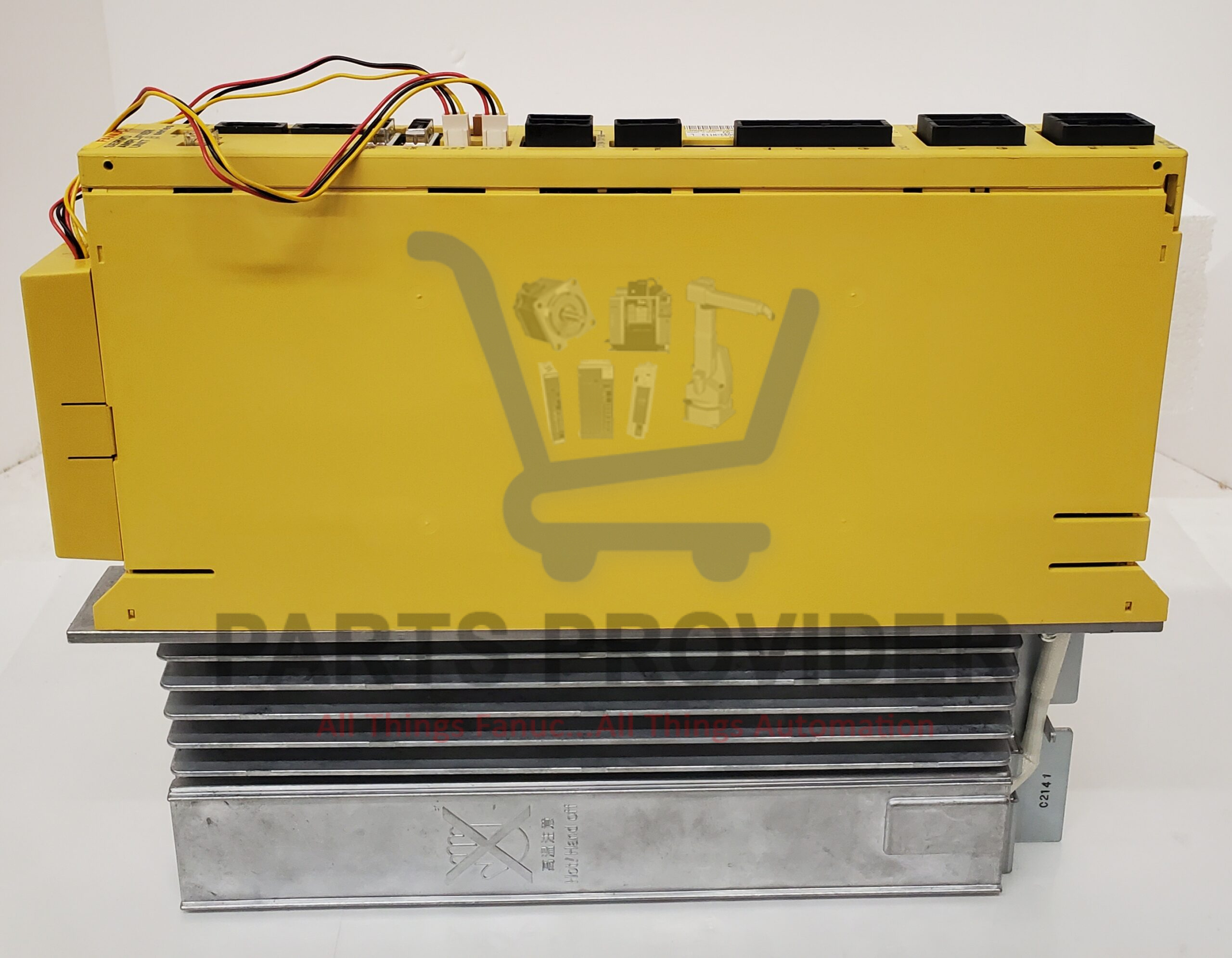

Part Number: A06B-6093-H113
Description: BETA SERVO DRIVE MDL SVU-40, FSSB INTERFACE
Product Series: A06B-6093
Control Series: FS16/18/21, FS15i/16i/18i/20i/21i-MODEL A, PowerMate
Rated Input: 50Hz/60Hz 220-240V (1-ph)/200-240V (3-ph); 15A (1-ph)/9.4A (3-ph)
Max Output Voltage: 240V
Rated Output Current: 12.5 A
Manual No. B-65232
Standard DIN VDE 0160
The main features of servo amplifier β series are as follows:
Features not dependent on the interface
(1) The servo amplifier β series is integrated with a power supply unit, so that a compact system can be implemented for one or two axes.
(2) The servo amplifier β series offers low-cost one-axis AC servo amplifiers.
(3) The servo amplifier β series offers models that support not only the FANUC standard interface, namely, the FSSB interface, but also the I/O Link interface available with the CNC, Power Mate, and PLC, and the conventional interface, namely, the PWM interface (type B).
(4) The dimensions of each amplifier are the same even if a different interface is employed.
(5) The servo amplifier β series offers a compact unit with its amounting space and cubic volume reduced by about 50% when compared with α SVU.
(6) The amplifier unit has been designed to conform to the European VDE0160 safety standard, American UL standards, and Canadian CSA standards.
The servo amplifier β series with the FSSB interface has the following features:
(1) The servo amplifier β series with the FSSB interface offers one axis AC servo amplifiers that are designed for feed axes and are used to drive the servo motor β series suitable for positioning and the servo motor αi series suitable for use with feed axes.
The servo amplifier β series with the I/O Link interface has the following features in addition to “Features not dependent on the interface”:
(1) Offer one-axis AC servo amplifiers suitable for use with positioning axes and used to drive the servo motor β series and servo motor αi series.
(2) Have a position control function as well as a set to facilitate control over peripheral devices such as turrets and ATCs.
(3) Can be connected to the Series 16/18/21/15i/16i/18i/20i/21i, Power Mate, Power Mate i PMC, and PLC via the I/O Link, thereby facilitating positioning axis expansion.
(4) Enable the master CNC to set and display parameters, the current position, and diagnosis data.
(5) Support move commands that make movement synchronize with a train of external pulses, thereby enabling diverse use.
