DESCRIPTION

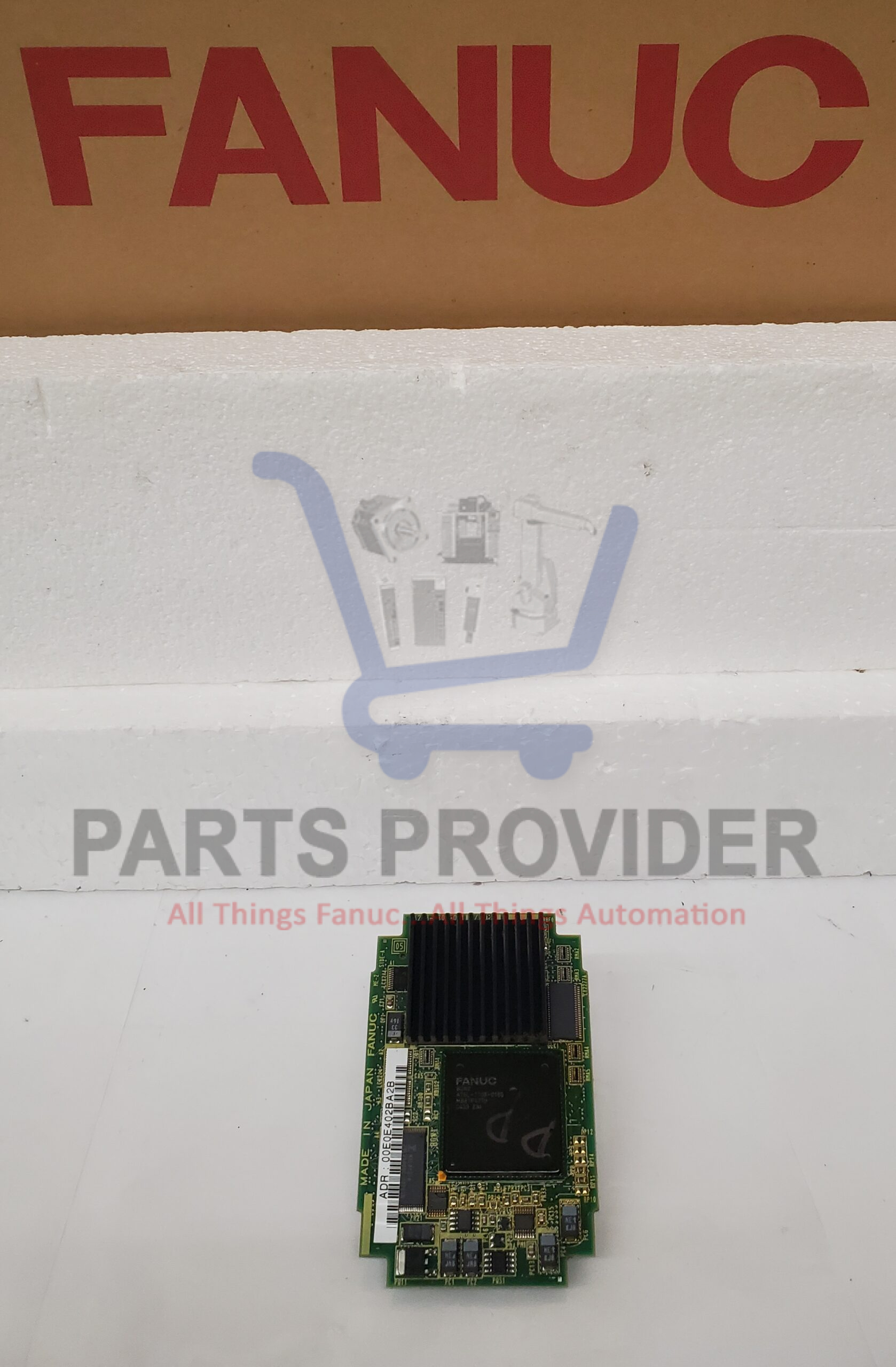

Part number: A20B-3300-0311
Description: FS16/18iB CPU DRAM 32MB, STAND-ALONE AND LCD-MOUNTED CONTROLS
Product Series: A20B-3300
The FANUC Series (FS) 16i, 160i, 18i, 180i, 21i, and 210i, 20i-MODEL B are super–compact ultra–thin CNC models with built–in liquid crystal displays. Each CNC unit is a mere 60 mm deep and features, immediately behind the liquid crystal display, a small CNC printed circuit board developed by utilizing state–of–the–art LSI and surface–mount technologies. Super–compact ultra–thin open CNC models are also available. Super–compact, ultra–thin open CNCs (the iS series) employing Windows CE as a GUI (Graphical user interface) function, and other Windows–2000–based open CNCs with high functionality are available.
The amount of cabling in the electrical unit of the machine can be significantly reduced by using a high–speed serial servo bus, which connects the CNC control unit and multiple servo amplifiers by a single optical fiber cable. Another innovation which simplifies the electrical unit of the machine tool is the use of compact distributed I/O modules, which can be separately mounted on the machine operator’s panel and control panel.
The FS16i and 18i include the Ethernet function as a standard function. (With the 21i/20i, the Ethernet function is available as an optional function.) This function enables easy networking if applications to run on the personal computer are prepared.
FSi-MODEL B CNC systems can connect with following servo motors and the corresponding spindle series:
- FANUC SERVO MOTOR ais/ai/βi series
- FANUC SERVO MOTOR a series
