DESCRIPTION

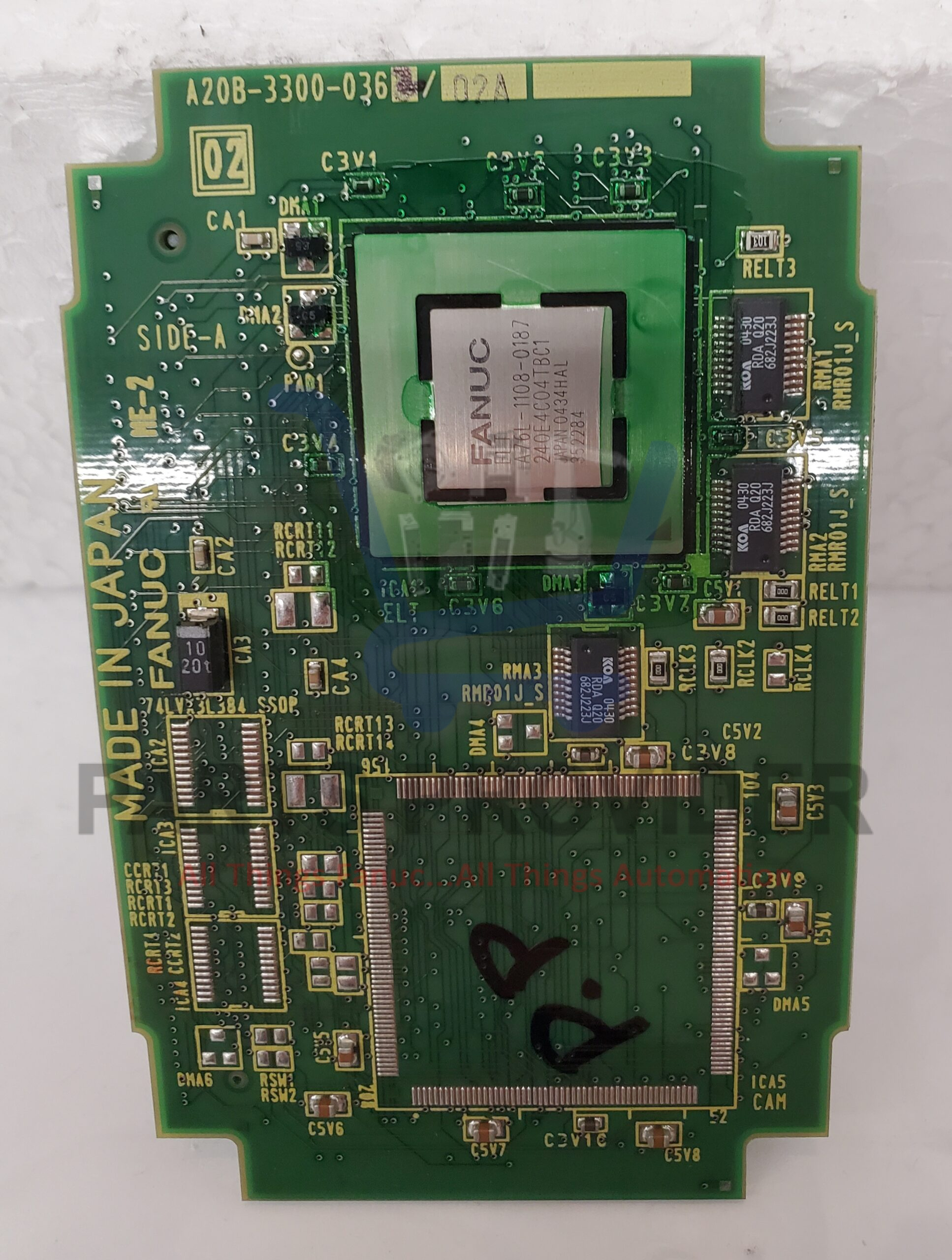

Part number: A20B-3300-0362
Description: 16/18/21iB,160/180/210iB, 160/180/210iS-B DISPLAY CONTROL CARD MDI W/ETHERNET
Product Series: A20B-3300
*USED EXCLUSIVELY WITH STAND-ALONE 16/18/21iB AND 160/180/210iB CONTROLS*
With the embedded Ethernet function, the following functions can be operated:
- FACTOLINK function
- FOCAS1/Ethernet function
- DNC1/Ethernet function
- FTP file transfer function
- Data created by a personal computer can be displayed on the NC screen by operations on the NC
- With the FACTOLINK function, data can be displayed on the CNC screen, and NC data can be transferred by operations on the NC.
- The FOCAS1/Ethernet function allows a personal computer to remotely control and monitor the CNC. The FOCAS1/Ethernet function can transfer a wider range of NC data than the DNC1/Ethernet function.
- Compared with the FOCAS1/Ethernet function, the DNC1/Ethernet function provides software libraries in a simpler function call format for frequently used functions.
- The FTP file transfer function transfers files with FTP. The function can read and punch NC programs and various types of NC data
- The following NC data can be transferred by operations on the NC:
- NC program
- NC file data Parameter
- Tool offset value Workpiece origin offset value Pitch error compensation
- M code group (Series 16i/18i/160i/180i/160is/180is–B only)
- History data
- Operation history data
*More information regarding EMBEDDED ETHERNET FUNCTION can be found in manual no. B- 63525EN, section 8*
